A 240V dryer circuit requires a dedicated 30-amp breaker with 10 AWG copper wire for standard electric dryers, or a 50-amp breaker with 8 AWG copper for larger models. NEC Article 422 mandates a dedicated circuit, proper grounding, and an accessible disconnect. Always verify your dryer’s nameplate amperage before sizing the circuit. (Related: How AI Tools Can Help Electrical Engineers Master NEC Code and Calculations) (Related: NEC Code Updates and Changes: What Electricians Need to Know About NFPA Reorganization) (Related: Electrical Load Calculator: Size Circuits Like a Pro) (Related: Washington State L&I Electrical Safety Standard Updates and NEC Code Compliance) (Related: Conduit Fill Calculator: Size Conduit the Right Way) (Related: Ohm’s Law Calculator: The Complete Guide to Voltage, Current, and Resistance)
240V Dryer Circuit Basics and NEC Requirements
Electric dryers draw significant power — typically between 20 and 30 amps during operation — which is exactly why the National Electrical Code (NEC) Article 422 requires a dedicated branch circuit for all electric dryers. A dedicated circuit means no other appliances share the same breaker or wiring, preventing nuisance trips and overheating hazards.
The two core requirements for any dryer circuit installation are straightforward: the circuit must be properly sized for the appliance load, and it must include a grounding path. Modern dryers use a 4-wire configuration (two hot conductors, one neutral, one ground) as required by NEC 250.140 for new installations. Older 3-wire setups may still exist in homes pre-dating the 1996 NEC revision, but any new dryer outlet installation must follow the current 4-wire standard.
According to OSHA’s electrical safety guidelines, improper wiring of high-amperage appliance circuits is a leading contributor to residential electrical fires — reinforcing why proper conductor sizing and grounding matter on every dryer circuit installation.
Key NEC requirements for 240V dryer circuits include:
- Dedicated branch circuit (no shared loads)
- Circuit breaker sized at 125% of the continuous load per NEC 210.20
- 4-wire outlet for all new installations (NEMA 14-30R)
- Accessible disconnect within sight of the appliance
- Proper wire gauge matched to breaker ampacity
Breaker Size and Wire Gauge Selection
What size breaker do I need for a 240V electric dryer?
Most residential electric dryers require a 30-amp double-pole breaker. This matches the standard NEMA 14-30R outlet configuration you’ll find on virtually every residential dryer sold today. However, always check the appliance nameplate — if the dryer lists a maximum circuit breaker size of 30 amps and a rated current draw of 24 amps, a 30-amp breaker is your correct choice.
Some high-capacity or commercial-style dryers — including certain combination washer-dryer units — may require a 50-amp breaker with 8 AWG wire. These are less common in standard residential settings but do exist. Using an undersized breaker on a higher-draw appliance creates a persistent tripping problem and a potential fire risk.
The dryer breaker size NEC code framework works like this:
| Dryer Load | Breaker Size | Wire Gauge (Copper) | Outlet Type |
|---|---|---|---|
| Standard (24A draw) | 30A double-pole | 10 AWG | NEMA 14-30R |
| High-capacity (30-40A draw) | 50A double-pole | 8 AWG | NEMA 14-50R |
To quickly verify your conductor sizing against your specific load requirements, use the wire size calculator — it applies NEC ampacity tables and voltage drop calculations automatically so you get the right gauge every time.
Step-by-Step Dryer Circuit Installation Guide
How do I wire a 240 volt dryer outlet?
Before starting, turn off the main breaker and confirm with a non-contact voltage tester that power is off at the panel. Never work on a live panel.
- Run the circuit cable: Route 10/3 NM-B (with ground) cable from your main panel to the dryer location. Keep it protected through walls and avoid sharp bends that can damage insulation.
- Install the outlet box: Mount a 2-gang electrical box at the dryer location, typically 12–18 inches from the floor or as needed for the dryer’s cord connection point.
- Connect the NEMA 14-30R outlet: The 4-wire outlet uses — black hot to X terminal, red hot to Y terminal, white neutral to W terminal, and bare/green ground to the ground terminal. Torque screws to terminal specifications.

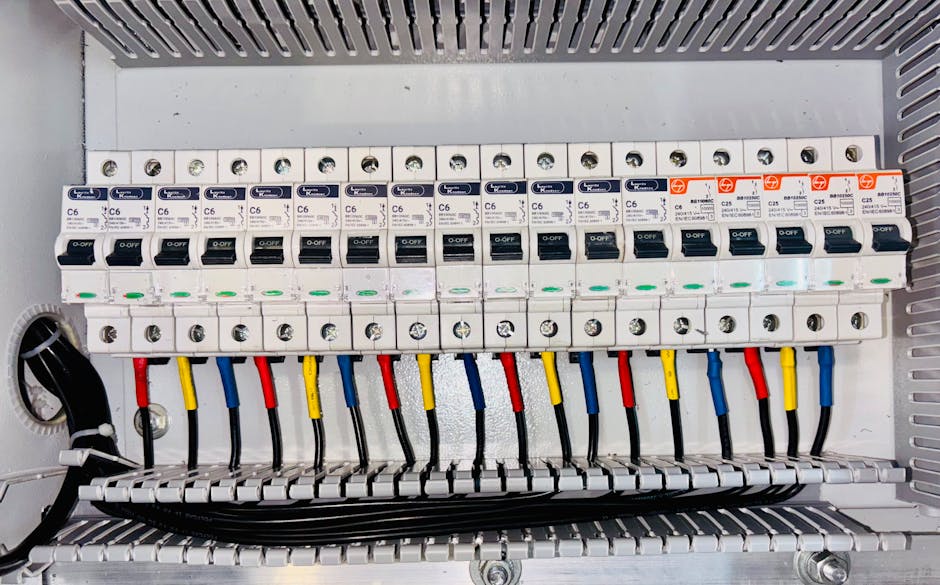

- Install the double-pole breaker: At the panel, connect the black wire to one breaker terminal, red to the other, white to the neutral bar, and bare ground to the ground bar. A 30-amp double-pole breaker snaps onto two adjacent hot bus bars.
- Label the breaker: Mark the breaker clearly as “Dryer” in the panel directory.
- Test before energizing: With the outlet wired, restore power and use a receptacle tester rated for 240V circuits to verify correct wiring before plugging in the appliance.
Common Dryer Wiring Configurations
The shift from 3-wire to 4-wire dryer circuits is one of the most misunderstood aspects of dryer outlet installation. Here’s what you need to know about both configurations:
4-Wire (Current Standard — NEC 250.140): Two hot wires (black and red), one neutral (white), and a separate equipment ground (green or bare). This is mandatory for all new construction and new outlet installations. The separate ground eliminates the dangerous practice of using the neutral conductor as both a current-carrying and grounding path.
3-Wire (Legacy — Pre-1996): Two hot wires and one neutral wire. The neutral served double duty as the grounding conductor. NEC 250.140 Exception permits keeping an existing 3-wire connection only when: the circuit originates at the existing panel, the outlet is part of the original installation, and the dryer is not in a location covered by a ground fault requirement.
When replacing a dryer in a home with an existing 3-wire outlet, you have two code-compliant options: replace the outlet with a 4-wire NEMA 14-30R and run new wire to the panel, or use a dryer with a 3-wire cord (per the NEC exception). The safest long-term approach is always upgrading to the 4-wire configuration.
Safety Considerations and Code Compliance
240 volt wiring requirements for dryers aren’t arbitrary — they exist because improperly wired high-amperage circuits are a documented fire and electrocution hazard. A few non-negotiable safety points:
- Never use aluminum wiring without proper connectors: If running aluminum conductors, use 8 AWG aluminum for a 30-amp circuit and ensure all terminations are rated for aluminum (AL/CU marked).
-
